INR323SSI
R323 Stainless Steel Indicators
Key Highlights & Features
20mm (0.8in) LCD display with LED backlight
AC, DC options
Connectors for simplified install
IP67 rated housing
rinLINK connector
Stainless Steel housing
Trade Approved Australia/Europe/USA
Whatsapp Equal Weighing
chat
Ask
share
Share
Description

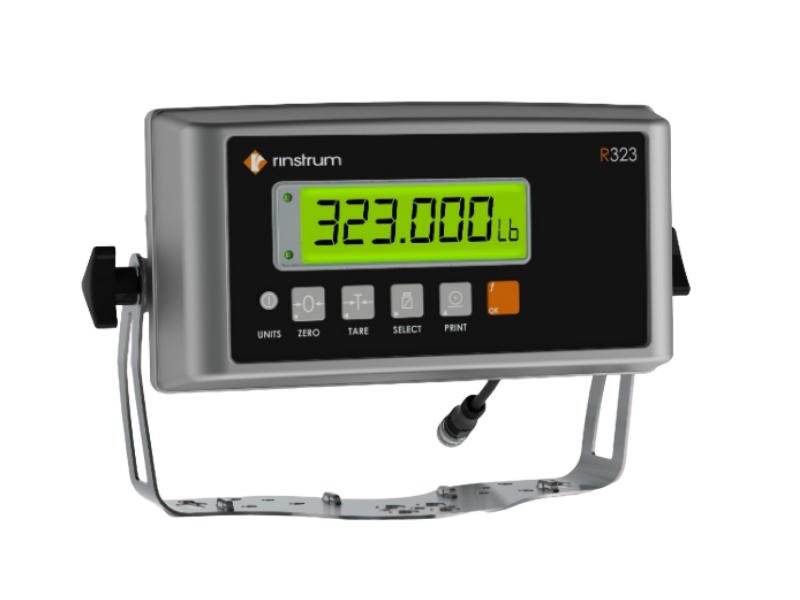

Rinstrum's compact stainless steel indicator the R323 has a new look and some new functionality. The stainless steel housing has been remodeled into a more compact format that is now rated to IP67 and includes easy to use connectors for power, communications and input/output. As with all R300 Series units, the latest versions include more memory allowing for the range of application firmware to be preloaded.

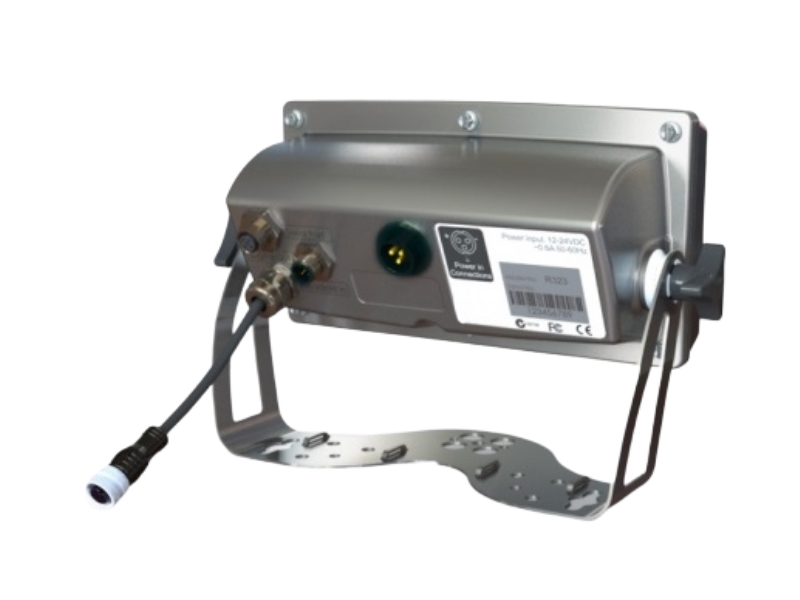

M12 connectors for simplified installation
, for serial and communications, M12 pigtail for the load cell
3 pin AC/DC connector for power
no need to open the unit
Wide DC operation (7-24V)
to suit a variety of onboard OEM applications. Eliminates the need for third party power supplies saving on system complexity and cost.
Electro polished passivated
304 stainless steel housing.
rinLINK
magnetically coupled link on front fascia for easy access in situ for updates/setup of the indicator, saving the installer time and effort.
IP67 rated housings:
Dust and water tight, increasing reliability and indicator life time.
Trade approved
in Australia, Europe and USA. Products are export ready with approved componentry.
The R323 supports a range of firmware options from basic weight display through to set points and custom printing. All the firmware is onboard, allowing for even easier upgrade in the field.
Name
K342
K344
K346
K354
K356
Printing (Serial RS232)
-
Simple
Simple
Custom
Custom
Function Key -Programmable
HOLD
HOLD
HOLD
1
1
Counting
-
-
-
S
S
Manual Hold
S
S
S
S
S
Peak Hold
-
-
-
S
S
Totalization
-
-
-
S
S
Ring Network
-
S
S
S
S
Bluetooth Accessory
-
A
A
A
A
Input
-
1
1
1
1
Clock Calendar
-
-
-
S
S
Set Points Outputs
-
-
2
2
2
S - Standard
A - Accessory
